Analysis of Misunderstandings in the Selection and Calculation of TVS Tube Clamping Voltage

一、Clarification of core concepts

1.1 Definition of key parameters

ParameterSymbolDefinitionTest conditions
Cut-off voltageVRWMMaximum reverse operating voltageIR=1mA
Clamping voltage VcLimiting voltage under peak pulse current Ipp= Rated value (e.g. 10A)
Breakdown voltageVBRThe voltage at the starting point of avalanche breakdownIT=1mA

Typical misunderstanding: Mistakenly believing that VRWM≈Vc (measured for a certain 5.5V VRWM device, Vc=9.8V at 10A)

二、Selection Misunderstandings and correction solutions

2.1 Misconception 1: Directly matching the working voltage

  • Incorrect practice: Selecting a TVS with VRWM=3.3V for a 3.3V system
  • Failure mechanism: Vc can actually reach 5.8V > IC tolerance limit (4.5V)
  • Correct formula: 瞬态电压抑制二极管.png

  •  Case: A certain MCU can withstand a voltage of 6V. TVS with Vc≤5.1V (such as ESD5V0U1U) should be selected.

2.2 Misconception 2: Ignoring Dynamic Impedance (Rdyn)

  • Misconception: Believing that Vc is a fixed value
  • Actual relationship瞬态抑制二极管.png

  • Measured data

    ModelRdyn(Ω)When Ipp=5A, VcVc when Ipp=10A
    SMAJ5.0CA1.28.2V14.2V
    SMBJ5.0CA0.87.0V11.8V


2.3 Misconception 3: Temperature drift is not calculated

  • Temperature coefficient formulaTVS温度系数公式.png

  • Key parameters

    • Silicon-based TVS:α_T ≈ 0.1%/℃
    • Automotive electronics case: At 125℃, Vc increases by 12% compared to 25℃

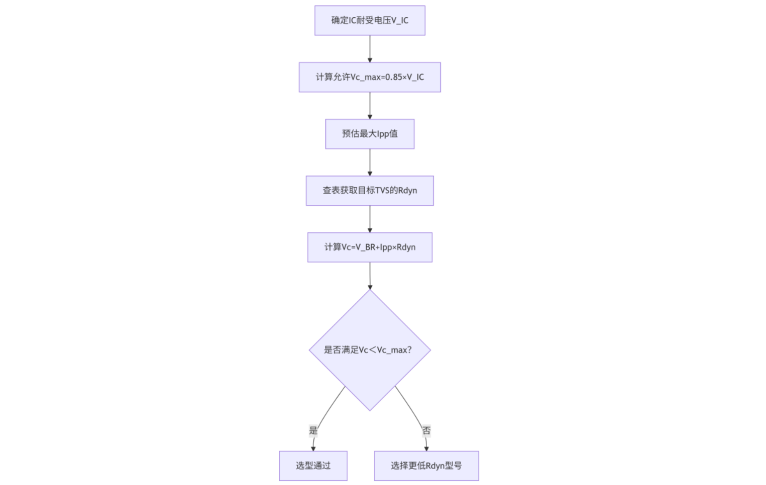

三、Engineering selection process


四、Actual measurement verification method

4.1 Double-pulse test method

IEC61000-4-5Standard waveform

  • First pulse: 8/20μs waveform (simulated lightning strike)
  • Secondary pulse: Repeated impact at an interval of 300ms

  • Failure criterion: If the Vc fluctuation is greater than ±5%, it is determined that the thermal stability is insufficient

4.2 Infrared thermal imaging positioning

  • Safety threshold: ΔT < 40K (@Rated Ipp)
  • Dangerous case: A TVS device experienced a temperature rise of 82K at 15A, causing the package to crack

五、Classic Rectification cases

5.1 The industrial RS485 port has failed

  • Original selection: SMAJ6.5CA (nominal Vc=10.5V)
  • Actual measurement issue: At 12A surge, Vc=14.3V > the tolerance limit of the optocoupler (12V)
  • Solution: Replace with P6KE6.8CA (Rdyn=0.5Ω, Vc=9.8V@12A)

5.2 ESD damage to the on-board camera

  • Incorrect design: TVS with VRWM=12V (Vc=19V) was selected
  • IC actual tolerance: 15V (compliant with ISO10605 requirements)
  • Rectification plan: Replace with AUTOESD15D (Vc=12.8V@8A)
