EMC design for Type-C port

In the EMC design of Type-C ports, we also focus on the miniaturization and high performance of inductors. The selected induction has a compact size to perfectly fit the compact layout of the Type-C port. At the same time, it needs to have a medium rated current - several hundred milliamperes - to ensure the efficiency of data transmission and the stability of power supply for the equipment. The low-loss feature is particularly crucial here. It can significantly enhance the conversion efficiency of the system and thereby improve the battery life performance of the equipment. Therefore, we choose inductors with these characteristics to meet the strict requirements of the Type-C port EMC design.

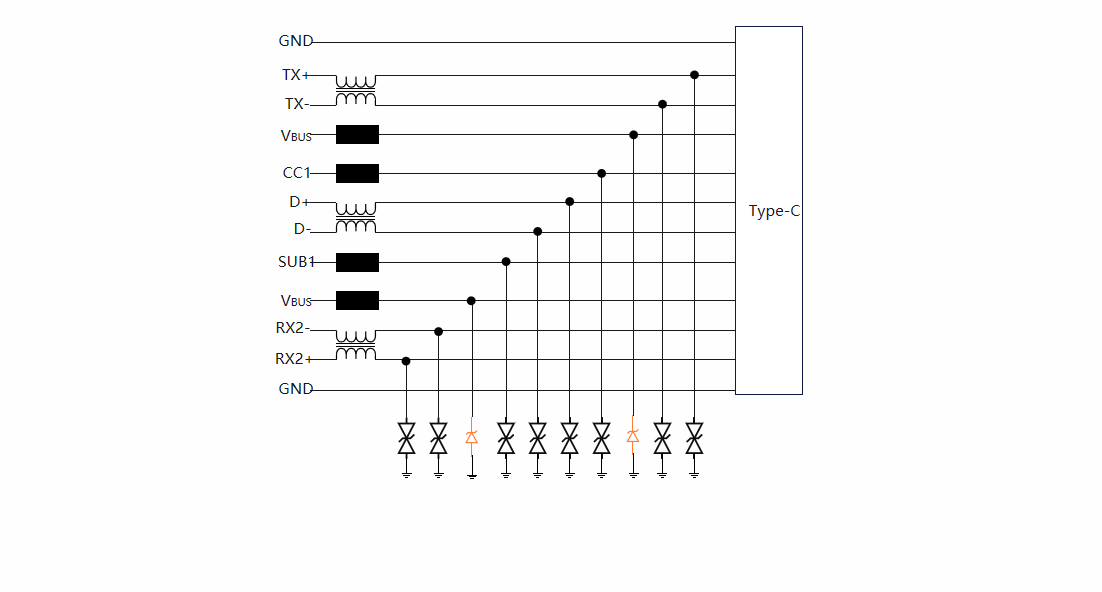

Type-C EMC Port design scheme

CMF2012WD900MQT

ESD12H401TR

CVB2012E601T

ESD5D003TA
