EMC design of VGA port

The EMC design of the VGA port ensures electromagnetic compatibility through measures such as shielding, filtering, ESD protection and magnetic bead application. Shielding reduces external interference, filters remove high-frequency noise, ESD protection devices prevent electrostatic damage, and magnetic beads suppress electromagnetic interference and maintain signal purity. These measures work together to ensure that the VGA port operates stably and reliably in complex electromagnetic environments, enhancing the overall performance and reliability of the equipment.

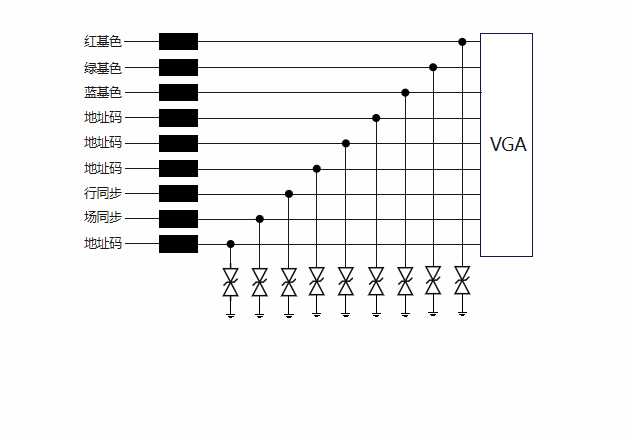

EMC design of VGA port

CVB1005C421T

ESD5D030TA
