EMC design of USB3.0 port

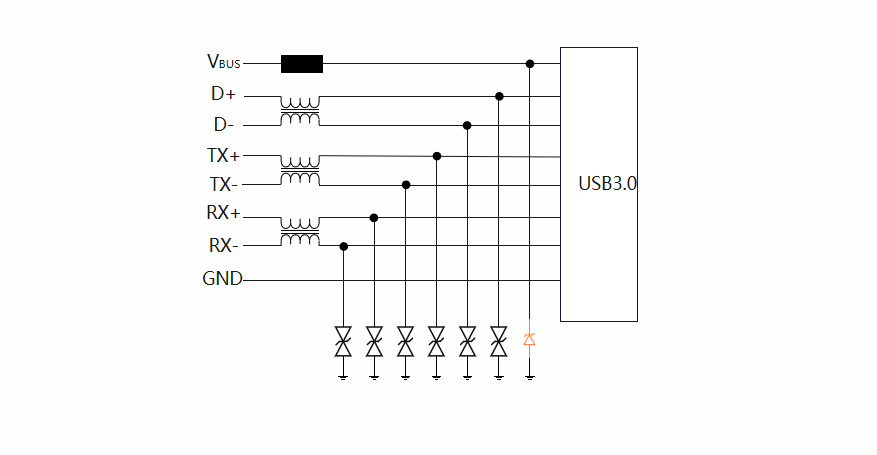

The EMC design of the USB3.0 port includes electrostatic protection, EMI suppression of signal lines, and power supply voltage stabilization and filtering. ESD protection devices are used to prevent static damage, common-mode choke inductors and magnetic beads suppress electromagnetic interference, and LC filters and decoupling capacitors remove power supply noise. Multi-layer PCB design and optimized signal traces reduce interference, ensuring stable operation of ports in complex electromagnetic environments.

EMC design of USB3.0 port

CVB1608E601T

CMF2012WD900MQT

CMF2012WD900MQT

CMF2012WD900MQT

ESD12H401TR

CV3BD001BW
