EMC design of the AUX port

In the EMC design of the AUX port, ESD protection devices prevent electrostatic discharge damage and provide a low-impedance path for rapid discharge of electrostatic energy. Magnetic beads suppress electromagnetic interference, absorb high-frequency noise and keep the signal pure. The two work in synergy to effectively enhance the electromagnetic compatibility of the AUX port, ensuring the stable and reliable operation of the equipment in complex electromagnetic environments and reducing potential failure risks.

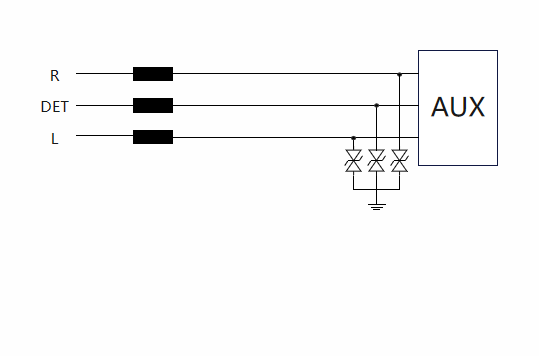

EMC design of AUX port

CVB1005E601T

ESD5D090TA
