DP interface design scheme

The DP interface (DisplayPort) is formulated by VESA, with high bandwidth, low latency and multi-functional expansion as the core. It adopts a compact trapezoidal /Mini DP form and supports differential signal transmission and is compatible with USB-C Alt Mode. Its physical layer achieves parallel data transmission through four low-voltage differential pairs (LVDS), supplemented by dynamic link training to optimize signal integrity. The protocol layer adopts a micro-packet architecture, supporting multi-stream transmission (MST) and Daisy chain topology, and a single interface can be expanded for multi-screen output.

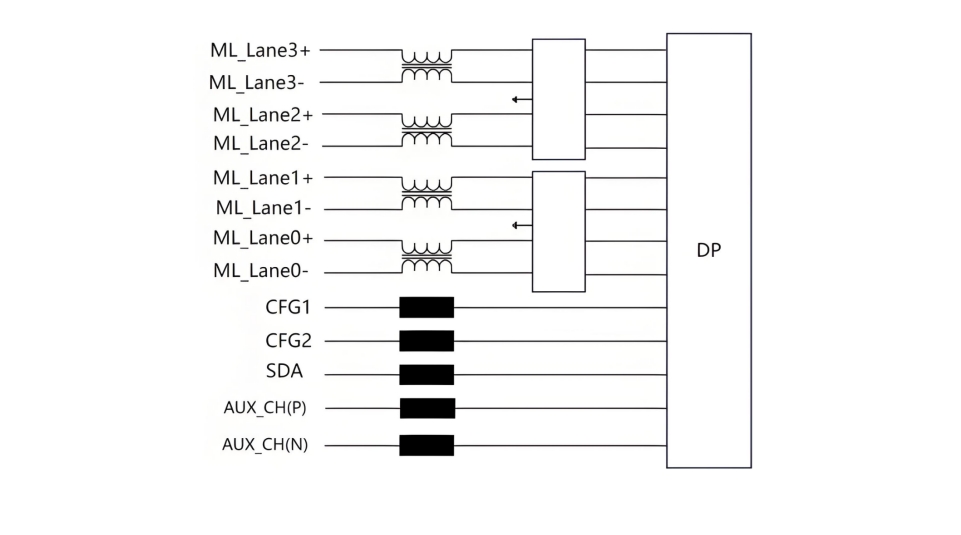

DP EMC interface design scheme

CMF2012WD900MQT

ESD0524UA

CVB1608E121T
