EMC design of TF card port

In the EMC design of TF card ports, we are committed to achieving miniaturization and high performance of inductors. The selected induction has a compact size to accommodate the tight design of the TF card slot. At the same time, it should have an appropriate rated current to ensure smooth and stable data transmission. Low-loss characteristics are key, as they help enhance the overall efficiency of the system and reduce energy consumption.

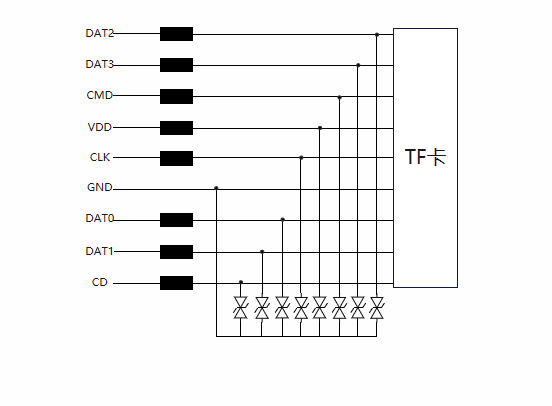

TFcard EMC Port design scheme

CVB1005E800T

ESD5D030TA
