EMC design of DC power supply port

In the design of power supply circuits, electromagnetic compatibility design is a key design. The main electromagnetic compatibility designs involved are: conducted emissions and surges. Conducted emission design generally adopts the input filter method. Surge design generally employs TVS(Transient Suppression Diodes).

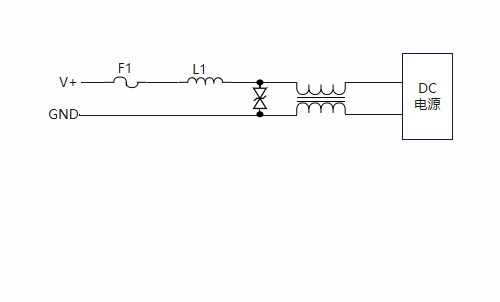

DC power supply EMC Port design scheme

CMF2J601WIT

SODA5.0B-SH
