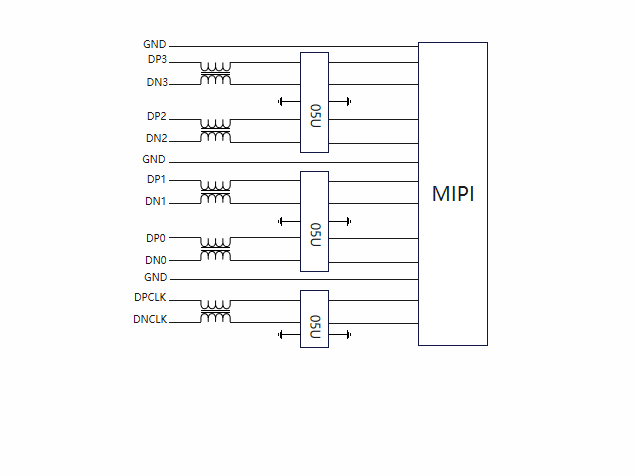

MIPI interface design scheme

The common-mode filter inductor filters out common-mode interference on differential signals. The common-mode impedance selection range is 60Ω@100MHz to 120Ω@100MHz, with a typical value of 90Ω@100MHz. ESD is mainly used to protect circuits from overvoltage surges. It can respond quickly to transient voltage changes and effectively clamp overvoltage at a relatively low level, thereby protecting the subsequent circuit from damage.

MIPI interface design scheme

ESD0524UA

CMF2012WA900MQT

CMF2012WA900MQT
