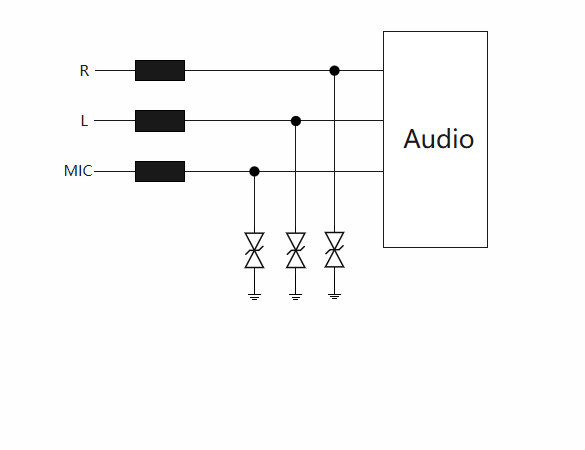

Audio interface design scheme

Magnetic beads are used to filter out interference on the power supply. The impedance selection range is 100Ω@100MHz to 1000Ω@100MHz, with a typical value of 600Ω@100MHz. When selecting magnetic beads, the current-carrying capacity should meet the requirements of the circuit current. ESD can quickly discharge static interference, preventing the large amount of interference energy generated during hot plugging from impacting the circuit and causing abnormal operation of the internal circuit.

Audio interface design scheme

CVB1005E601T

ESD5D090TA
