ESD protection solution for Bluetooth headphones

In the power circuit of Bluetooth headphones, on the one hand, the inductor is required to have a small size and a medium rated current (several hundred mA), and on the other hand, it is required to have low loss to achieve high conversion efficiency and strong battery life. The MWSD-FE series of wound ferrite inductors feature low DC and AC resistance, and their saturation current can meet the application requirements.

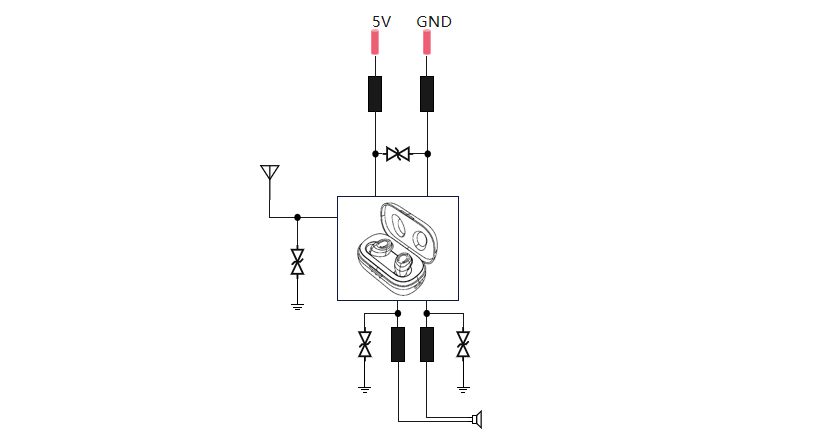

Bluetooth headset ESD protection scheme design

CVB1005E601T

CVB1005E601T

ESD5D150TA

ESD2D005LA

ESD5D150TA

ESD5D150TA
