ESD Diode Protection Solution: How to Make a Good ESD Protection Selection?

    Electrostatic discharge (ESD) is one of the primary causes of electronic device failure, resulting in billions of dollars in losses for the global electronics industry every year. ESD diodes (TVS diodes), as core protective devices, their selection directly affects the reliability and lifespan of the product. This article will systematically analyze the key elements of ESD protection design and provide a scientific selection methodology.

一、The working principle and types of ESD diodes

1.1 Core protection mechanism

  • Avalanche breakdown effect: Responds to ESD pulses within nanosecond time (typical rise time 0.7-1ns)
  • Voltage clamping: Limit several thousand volts of ESD voltage to a safe range (such as 30kV→15V)
  • Energy discharge: Provides low-impedance path discharge peak current (up to 150A)

1.2 Device type selection

TypeApplicable scenariosRepresentative model
Bidirectional TVSPower line/differential signalESD24D300TA
Unidirectional TVSDc power supply/single-ended signalESD12D450TR
Multi-channel TVS arrayMulti-pin interfaces such as USB/HDMIESD3V6M030TR
Ultra-low capacitance TVSHigh-speed interface (≥5Gbps)ESD5D150TA

二、Five core parameters for ESD selection

2.1 Operating voltage (VRWM

  • Selection criterion: VRWM ≥ the maximum operating voltage of the circuit × 1.2
  • For a 5V circuit, a TVS with VRWM≥6V should be selected

2.2 Clamping voltage (VC

  • Key formula: VC < IC - Withstand voltage × 0.8
  • Data support: 8kV ESD pulse under IEC 61000-4-2 standard, typical clamping voltage should be ≤50V (@30A)

2.3 Peak pulse current (IPP

  • Industry standard requirements
    • Consumer electronics: IPP ≥ 5A (Contact discharge 8kV)
    • Industrial equipment: IPP ≥ 20A (Contact discharge 15kV)
    • Automotive electronics: IPP ≥ 30A (ISO 10605 standard)

2.4 Junction capacitance (Cj

Interface typeMaximum allowable capacitanceRecommended device
USB 2.0< 5pFESD5C150TA
USB 3.2/HDMI< 0.5pFESD3V3E005SA
5G RF antenna< 0.3pFESD5N150TA

2.5 Thermal performance of packaging

  • Thermal resistance (θJA) comparison
    • SOD-323:350°C/W
    • DFN1006:220°C/W
    • SOT-23:180°C/W

三、Typical application scenario selection scheme

3.1 High-speed data interface protection

Case: USB4 interface (40Gbps)

  • Requirement: Cj<0.3pF, IPP≥8A

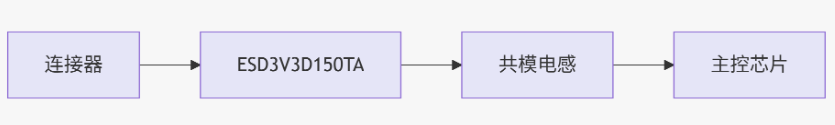

  • Plan

ESD二极管防护方案


  • Layout points: TVS distance from interface ≤3mm, grounding vias ≥4

3.2 Automotive electronic protection

Meet the requirements of AEC-Q101 certification

  • Temperature range: -40℃ to 150℃
  • Passed the ISO 7637-2 5a/5b pulse test
  • Recommended solution: ESD36D200TA + magnetic bead filter

3.3 Power protection for industrial equipment

Three-level protection architecture

  1. Primary: Gas discharge tube (8/20μs, 20kA)
  2. Secondary: TVS diode (ESD48B150TA)
  3. Final stage: LC filter

四、Selection Misunderstandings and Corrections

Common misunderstandingsCorrect practice
Focus only on VRWM and ignore VCEnsure that VC is less than 90% of the IC withstand voltage value
The high-speed interface adopts a universal TVSThe S21 parameters (@10GHz) must be verified.
Ignore the influence of PCB layoutThe length of the grounding loop is less than three times its width
Temperature derating was not taken into accountAt 150℃, the IPP should retain a 30% surplus

五、ESD protection design verification process

  1. Simulation stage
    • The clamping characteristics were verified using the SPICE model
    • The TLP test acquires the dynamic resistance parameters
  2. Prototype testing
    • IEC 61000-4-2 Level 4 (±15kV contact /±30kV air)
    • Eye diagram test (high-speed Interface Signal Integrity)
  3. Mass production monitoring
    • TLP sampling test (to ensure process consistency)
    • Automatic optical inspection (AOI) checks the welding quality

六、Industry frontier trends

  1. Integrated protection: TVS+ filter + magnetic bead single-chip solution (such as ESD24R300TA)
  2. Wide voltage compatibility: 5-36V adaptive TVS (automotive 12V/24V systems)
  3. Ultra-miniature package: 01005 size (0.4×0.2mm) TVS devices
  4. Ai-assisted Design: ESD Risk Prediction System Based on Machine Learning

Conclusion
    Scientific ESD protection selection needs to balance electrical parameters, application scenarios and cost factors. Mastering the "voltage matching - current capability - signal compatibility" three-in-one selection rule and combining it with rigorous testing and verification can build a reliable ESD protection system. With the application of third-generation semiconductor materials, new technologies such as GAN-based TVS will provide better solutions for high-power scenarios.
