What should be done if a USB interface fails ESD testing?

When a USB interface fails ESD testing, the failure mode and test path should first be identified; subsequently, the selection and placement of ESD components, grounding paths, interface trace routing, and the robustness of the protected chip should be examined. Most issues cannot be resolved simply by replacing the component with a larger one; instead, comprehensive adjustments involving the component, layout, and ground return path are required.

I. Assess the Failure Symptoms

Common manifestations of USB interface ESD test failures include communication interruptions, device reboots, damage to interface chips, abnormal USB recognition, and unintended activation of touch controls or buttons. Different symptoms require different remediation strategies.

If the system experiences a momentary freeze, the ESD may be entering the system via the ground loop or through power supply coupling; if the interface chip is damaged, the focus should be on inspecting the clamping capability of the protection components and the layout routing.

II. Focus on Inspecting Five Key Areas

First, check whether the ESD device is positioned close to the interface; second, verify that the GND discharge path is short; third, check for excessively long branches on high-speed signal lines; fourth, ensure the VBUS line has dedicated power protection; and fifth, examine the connection method between the shielding case, the ground plane, and the system ground.

Many USB interfaces fail testing not because the chosen ESD component is inherently unsuitable, but rather because the device is located too far from the interface, there are too few grounding vias, or the discharge path follows a circuitous route.

III. Remediation Methods

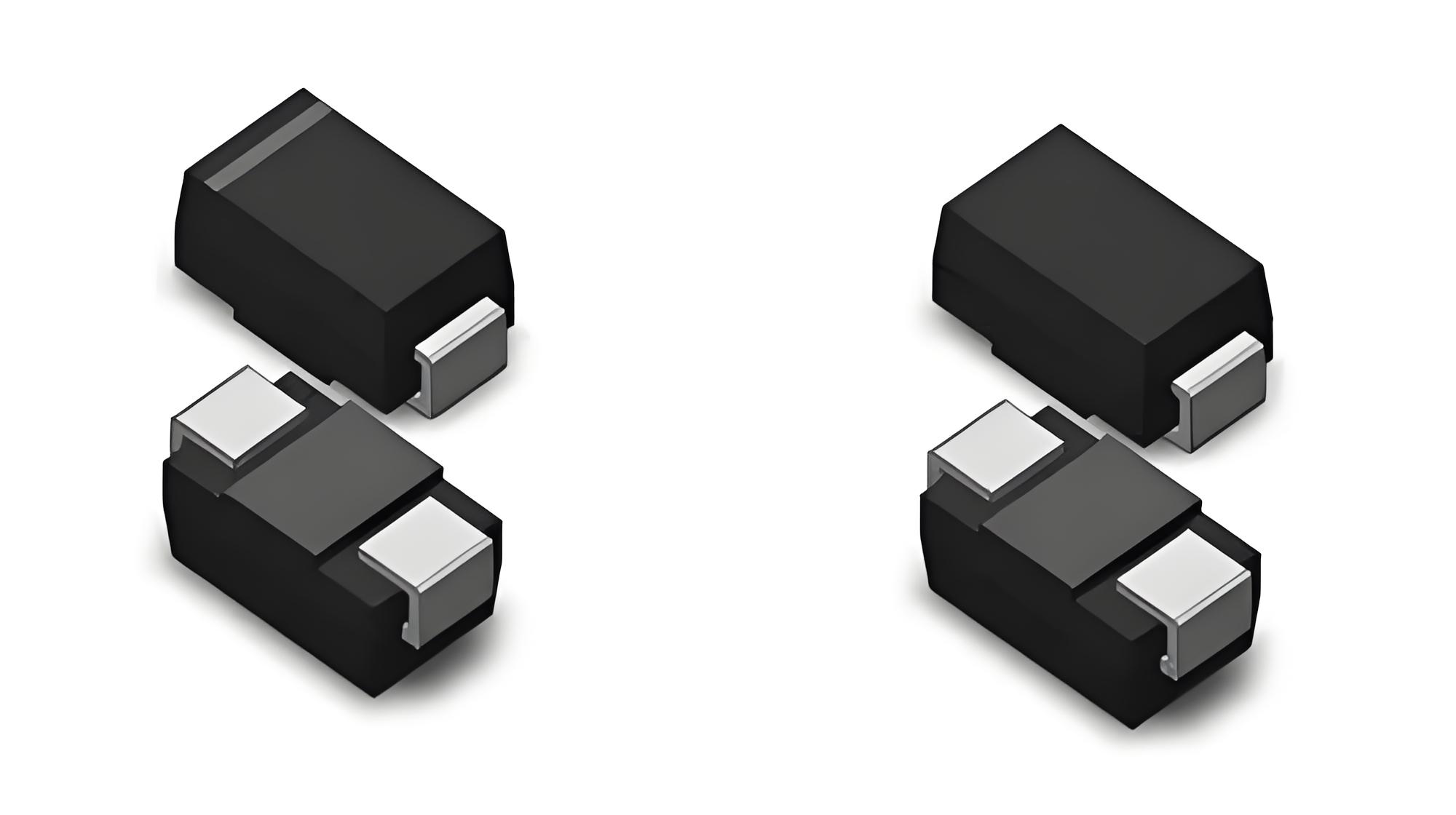

Relocate ESD devices closer to the connector to shorten signal branches; add a via in close proximity to the protection device's GND terminal; replace components with low-capacitance models based on interface data rates; add a suitable TVS for the VBUS line; and, if necessary, optimize the connector shell grounding and ground plane integrity.

After remediation, retest for both contact and air discharge and monitor communication stability; do not rely solely on whether the ESD rating requirements are met.

IV. ASIM Support Services

By analyzing customer schematics, PCB files, and test results, ASIM provides support regarding ESD component selection, layout recommendations, sample verification, and EMC remediation, helping customers identify the actual path of failure during USB interface electrostatic testing.

FAQs

Q: Does an ESD failure at the USB port necessarily mean the selected component is undersized?

A: Not necessarily. Component placement, grounding paths, and system ground design can also cause failures.

Q: Would switching to a higher-power ESD component be better?

A: For high-speed signal lines, power rating isn't the only factor; junction capacitance and parasitic parameters are critical, as they can otherwise affect communication.

Q: What verification is required after modifications?

A: You should verify the ESD rating, USB recognition, data transmission, and eye diagram or communication stability.
